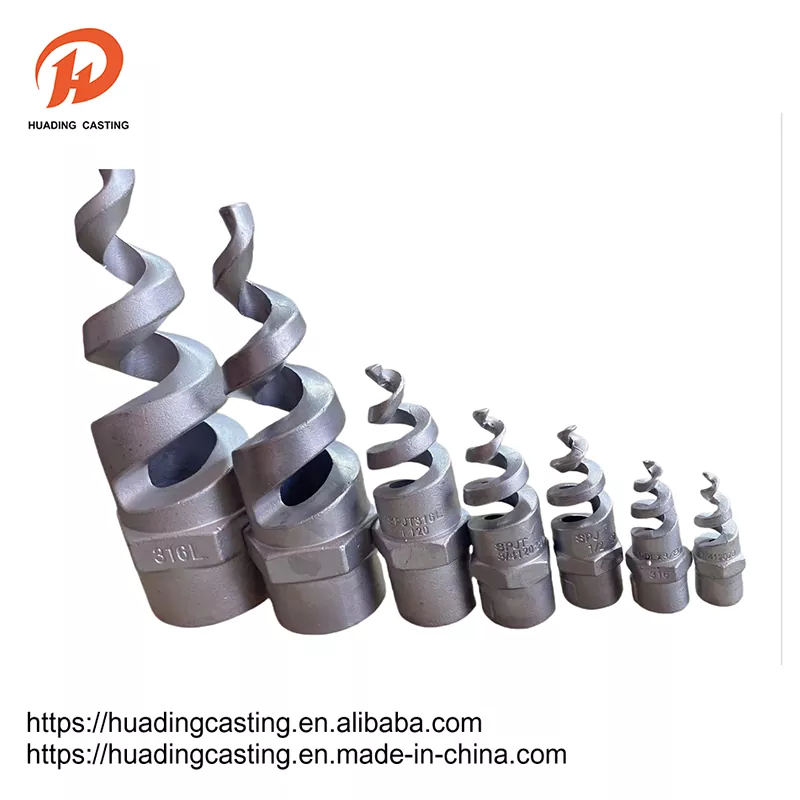

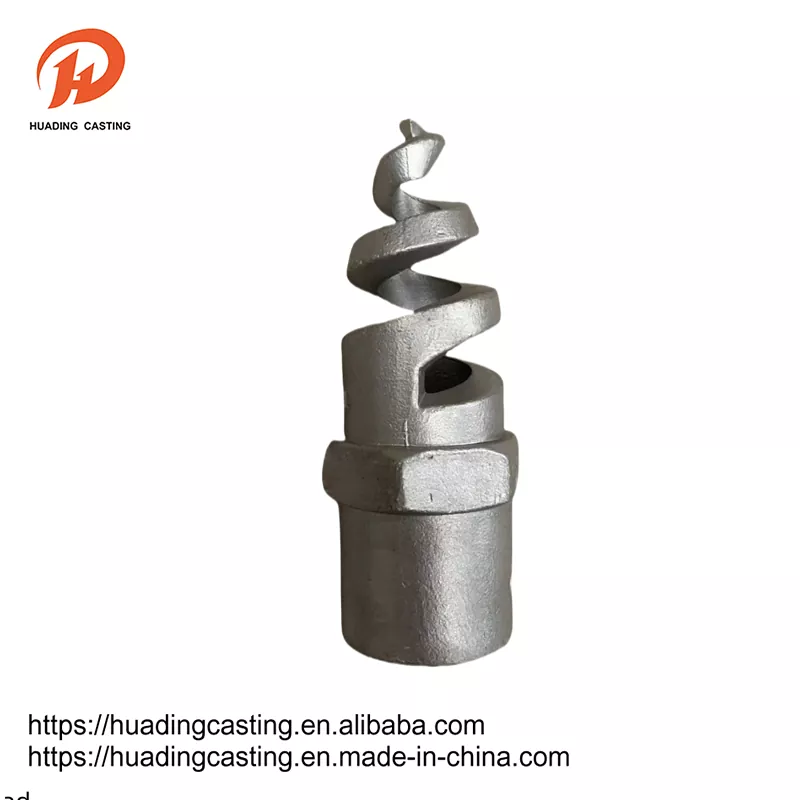

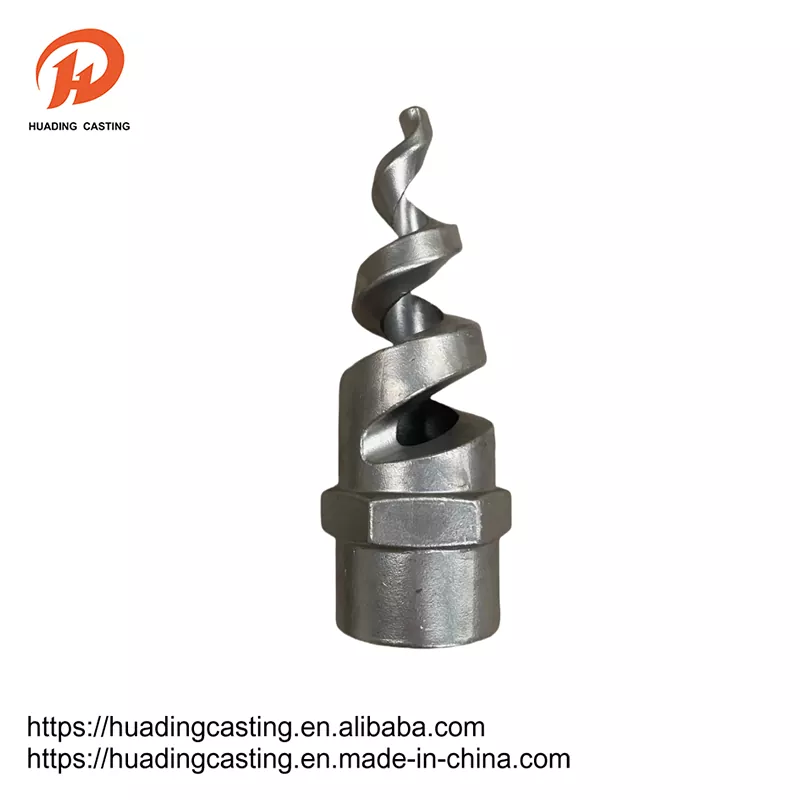

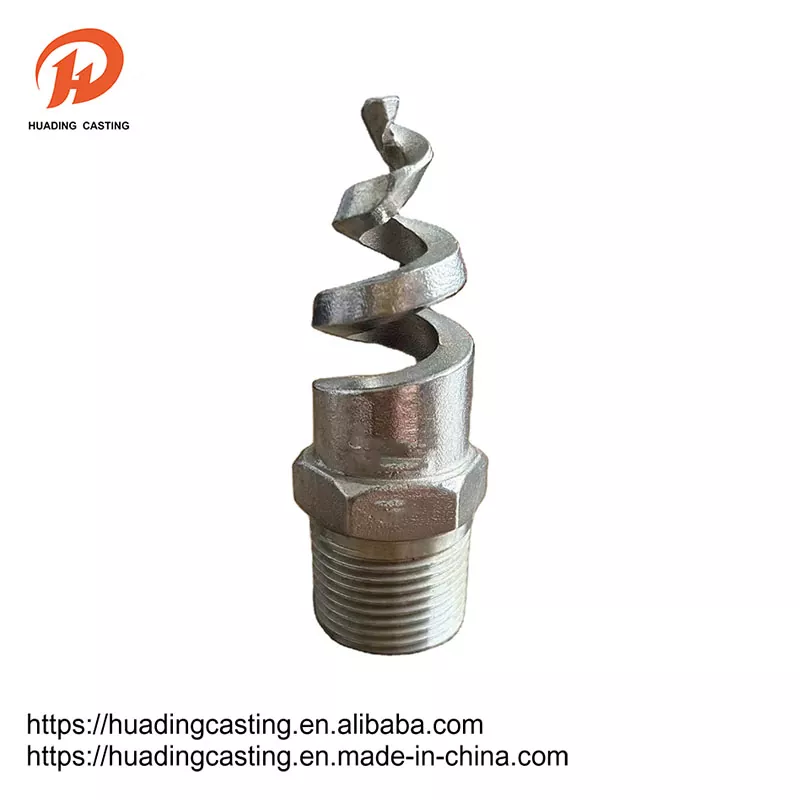

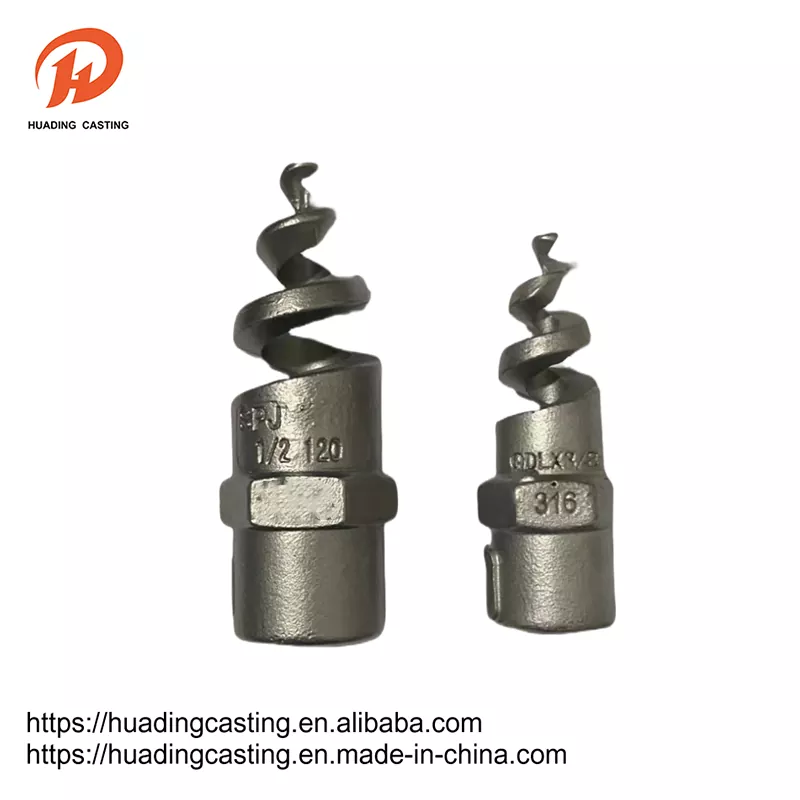

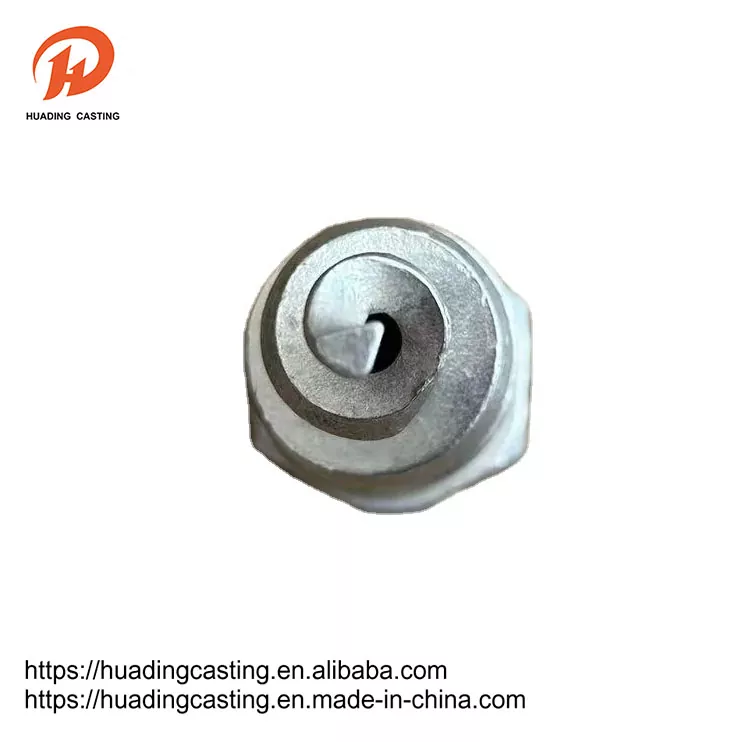

Investment Casting Spiral Nozzle

The Investment casting spiral nozzle is a new type of conical nozzle, which can produce a spiral hollow or solid conical spray shape, and the spray Angle is 60° to 170°. The compact design of the Investment casting spiral nozzle allows liquid to be sprayed at a high flow rate on a given size of pipe, reducing nozzle clogging due to a non-blocking channel design.These compact nozzles feature smooth flow channels that minimize liquid clogging and maximize liquid flow in a given size of pipe.

Send Inquiry

Product Description

Applications

316L stainless steel spiral nozzles can be installed or updated in most piping systems:

For example, chemical, environmental protection, electric power, textile and many other industrial fields, especially in the flue gas desulfurization and dust removal industry is more widely used. Its wear resistance, corrosion resistance, anti-fog, anti-blocking and other properties have been accepted by many users in the industry.

Product Details of Investment Casting Spiral Nozzle

Product name	Investment Casting Spiral Nozzle
Material	SUS 316L
Feature	Meet the requirement of spraying without changing air pressure and hydraulic pressure. With air cap and liquid cap. Wide liquid capacity coverage. Good moisture effect. Ideal for moisture control. Flexible with changeable parts.
Unit(mm)	1/4’’	3/8’’	1/2’’	3/4’’	1’’	1.2’’	1.5’’	2.0’’
H	42	53	68	80	99	113	152	179
H1	27	33	46	55	66	78	115	134
H2	11	13	16	18	24	27	27	30
φ	13	17	21	26	33	41	47	59
K	14	18	22	27	34	43	49	61
Weight（g）	24	35	67	120	180	300	640	1160
